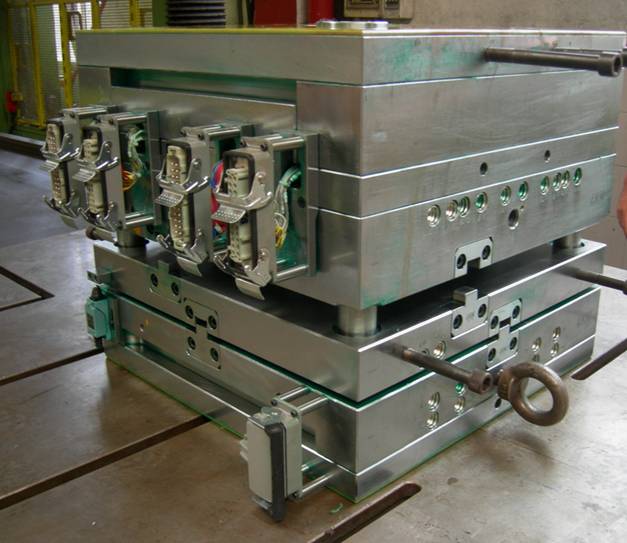

In this section we will show you all the open mold parameters index. Includes the pressure and flow ramp, time of movements and other parameters.
| No. | Close mold-other Ramp | ||
|---|---|---|---|
| 1 stage | Close mold at the start Ramp maximum counting –The initial pressure/ speed increase time is the maximum value. | ||
| 2 stage | / | ||
| 3 stage | / | ||
| Low pressure | Close mold pressure Ramp | ||
| High pressure | Close mold flowing Ramp | ||
| No. | Close mold- Pressure Ramp | ||
|---|---|---|---|
| 1 stage | Close mold 1 stage pressure Ramp – The increase slope of Close Mold 1 stage pressure buildup time. | ||
| 2 stage | Close mold 2 stage pressure Ramp –The increase slope of Close Mold 1 stage pressure buildup time. | ||
| Low pressure | Close mold 3 stage pressure Ramp –The increase slope of Close Mold 1 stage pressure buildup time. | ||
| High pressure | Close mold 4 stage pressure Ramp – The increase slope of Close Mold 1 stage pressure buildup time. | ||
| No. | Close mold- Flow Ramp | ||
|---|---|---|---|
| 1 stage | Close mold 1 stage pressure Ramp – The increase slope of Close Mold 1 stage speed buildup time. | ||
| 2 stage | Close mold 2 stage pressure Ramp – The increase slope of Close Mold 1 stage speed buildup time. | ||
| Low pressure | Close mold 3 stage pressure Ramp – The increase slope of Close Mold 1 stage speed buildup time. | ||
| High pressure | Close mold 4 stage pressure Ramp – The increase slope of Close Mold 1 stage speed buildup time. | ||
| No. | Open mold- Pressure Ramp | ||
|---|---|---|---|
| 1 stage | Open mold 1 stage pressure Ramp – The increase slope of Open Mold 1 stage pressure buildup time. | ||
| 2 stage | Open mold 2 stage pressure Ramp – The increase slope of Open Mold 1 stage pressure buildup time. | ||
| 3 stage | Open mold 3 stage pressure Ramp – The increase slope of Open Mold 1 stage pressure buildup time. | ||
| 4 stagee | Open mold 4 stage pressure Ramp – The increase slope of Open Mold 1 stage pressure buildup time. | ||
| No. | Open mold- Pressure Ramp | ||
|---|---|---|---|
| 1 stage | Open mold 1 stage pressure Ramp – The increase slope of Open Mold 1 stage pressure buildup time. | ||
| 2 stage | Open mold 2 stage pressure Ramp – The increase slope of Open Mold 1 stage pressure buildup time. | ||
| 3 stage | Open mold 3 stage pressure Ramp – The increase slope of Open Mold 1 stage pressure buildup time. | ||
| 4 stagee | Open mold 4 stage pressure Ramp – The increase slope of Open Mold 1 stage pressure buildup time. | ||
| No. | Open Mold- Flow Ramp | ||
|---|---|---|---|
| 1 stage | Open mold 1 stage pressure Ramp – The increase slope of Open Mold 1 stage speed buildup time. | ||
| 2 stage | Open mold 2 stage pressure Ramp – The increase slope of Open Mold 1 stage speed buildup time. | ||
| 3 stage | Open mold 3 stage pressure Ramp – The increase slope of Open Mold 1 stage speed buildup time. | ||
| 4 stagee | Open mold 4 stage pressure Ramp – The increase slope of Open Mold 1 stage speed buildup time. | ||
| No. | Close mold-pressure/flow | ||
|---|---|---|---|
| 0 | Close mold setup pressure – Close mold pressure during mold height adjustment | ||
| 1 | Close mold setup flow – Close mold speed during mold height adjustment | ||
| No. | Open mold-pressure/flow | ||
|---|---|---|---|
| 0 | Open mold setup pressure – Open mold pressure during mold height adjustment | ||
| 1 | Open mold setup flow – Open mold speed during mold height adjustment | ||
| No. | Movement time 1 | ||
|---|---|---|---|
| 0 | Close mold deviation valve open delayed time – Time delay of the opening of the close mold deviation valve | ||
| 1 | Close mold deviation valve open delayed time – Time delay to stop the close mold deviation valve. | ||
| 2 | Close mold low pressure forward time delay – Close mold low presuure pressure, speed delay sent. | ||
| 3 | Close mold low pressure valve delayed time – Close mold low pressure valve delay sent. | ||
| 4 | Auto mold adjustment low pressure time- Auto mold adjustment timing at 1 stage. | ||
| No. | Movement time 2 | ||
|---|---|---|---|
| 0 | Close mold high pressure forward time delay – Close mold high pressure pressure, speed delay sent. | ||
| 1 | Close mold high pressure maintains time – After close mold, maintain valve, pressure speed, delay stop. | ||
| 2 | Delay the stop time of the close mold done valve – After the close mold, close mold valve stop delayed. | ||
| 3 | Close mold done delay timing – After close mold, pressure speed stop delayed. | ||
| 4 | Open mold 1 delay sent slower then the low pressure valve – Open mold 1 delay sent slower then PC22 valve. | ||
| No. | Movement time 3 | ||
|---|---|---|---|
| 0 | Open mold 2 delay sent slower then low pressure valve – Open mold 2 delay sent slower then PC22 valve | ||
| 1 | Open mold done stop delay valve timing – After open mold done, valve delay stop | ||
| 2 | Open mold done delay timing – After the open mold done, pressure speed stop delay. | ||
| 3 | Open mold vent pressure timing- Vent pressure movement time | ||
| 4 | Open mold position effective zon – Open mold complete position positive and negative effective zon. | ||
