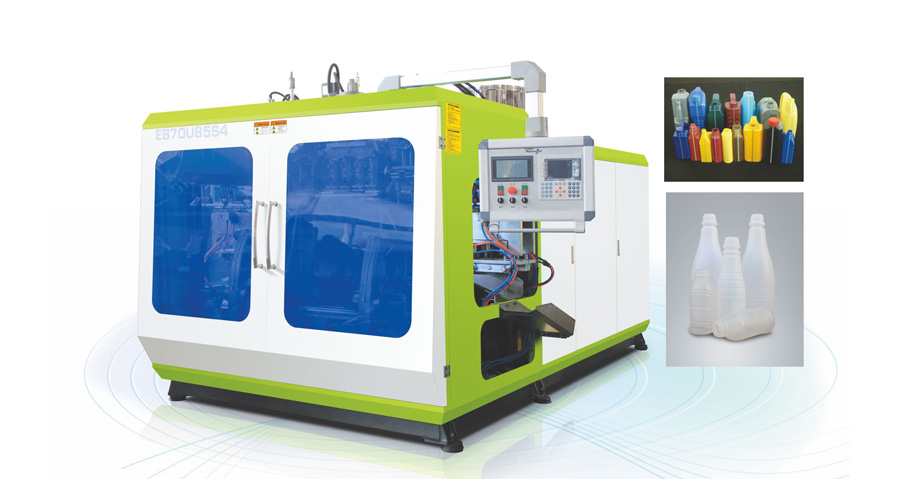

Two Station High Speed Extrusion Blow Molding Machines
Two Station High Speed Extrusion Blow Molding Machines advantage as below:
- Toggle balance clamping structure,with platen opening &clamping and mold platen movement by linear guide,to achieve low friction and high speed.
- Based on the Finite Element Analysis design,and platen,toggle and platen frame made in high intensity nodular cast iron.
- High speed mold clamping oil cylinder with differential speed function,and high speed mold clamping oil cylinder with special anti-shock cushion valve structure.
- Specially designed screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top-quality requirement.
- Multi-screw &multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
- Famous brand of vector inverter in high pulling torque, complied with special extrusion hardened reducer, can operate in stable, durable, and low noise state.
- All hydraulic parts are from Yuken (Japan). Pressure & proportional control are set by PLC, which ensures the stable operation; Mold movement is controlled by special speed limited valves, ensuring precise position and non-striking.
- Parts of pneumatic system are imported from FESTO (Germany), SMC (Japan), etc, which are top brands in the world. These make sure the operation of machine reliably and accurately; the air circulation is large while the leakage is very small.
- High speed Siemens (Germany) PLC with multiple language touch screen, easy-access menu display, is easy to control and operate.
- Schneider (France) touchless sensors and switches are adopted, which are dependable and in low heat, & prolonged life.
- Multiple-way PID controlled temperature heating is precise and stable.
- Fully automatic operation can be achieved by optional equipments like auto-deflashing, rotary trimming device, or separated rotary trimming equipment.
- Price and Service for China Extrusion Blow Molding Machine Manufacturer Directly.
| Model | Unit | EB30U55 | EB30U65 | EB70U70 | EB70U75 | EB70U85 |
|---|---|---|---|---|---|---|
| Max. Volume | L | 4 | 4 | 7 | 7 | 10 |
| Clamping Force | KN | 65 | 65 | 85 | 85 | 110 |
| Max. Mould Size | mm | 400×360 | 400×360 | 500×450 | 500×450 | 580×450 |
| Screw Diameter | mm | 55 | 65 | 70 | 75 | 85 |
| Screw L/D Ratio | mm | 25 | 25 | 25 | 24 | 24 |
| Screw Rotary Speed | RPM | 75 | 75 | 75 | 75 | 75 |
| Extrusion Weight(HDPE) | kg/hr | 50 | 65 | 80 | 95 | 120 |
| Extrution Motor Power | KW | 11 | 15 | 18.5 | 22 | 30 |
| Pump Motor Power | KW | 7.5 | 7.5 | 11 | 11 | 11 |
| Heating Power | KW | 8 | 11 | 15 | 18 | 25 |
| Operation Pressure | Mpa | 0.6 – 0.8 | 0.6 – 0.8 | 0.6 – 0.8 | 0.6 – 0.8 | 0.6 – 0.8 |
| Air Consumption | m3/min. | 1.5 | 1.5 | 2.5 | 2.5 | 2.5 |
| 25°C Chilled Water Consumption | L/min | 50 | 50 | 100 | 100 | 100 |
| Oil Tank Capacity | L | 95 | 95 | 130 | 130 | 130 |
| Machine Dimension | M | 3.63×2.06×2.4 | 3.63×2.06×2.4 | 3.78×2.26×2.5 | 3.78×2.26×2.5 | 4.22×2.26×2.5 |
| Machine Weight | Ton | 4.4 | 4.5 | 5.5 | 5.65 | 5.82 |
| * Some data may updated without any notice | ||||||
