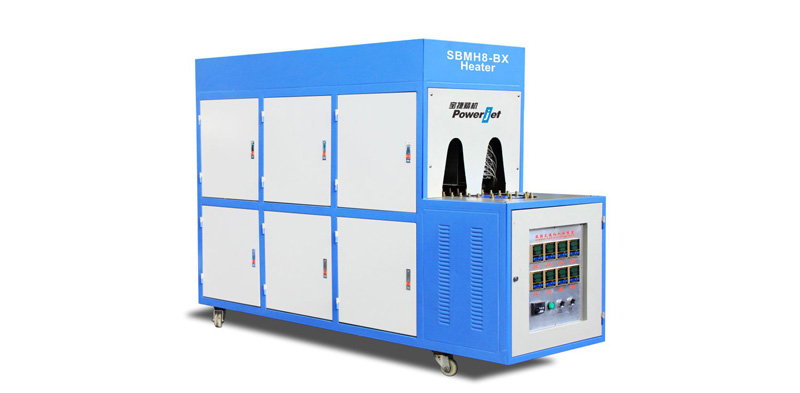

Infrared Heaters for Bottle Stretch Blow System

infrared heating equipment for PET preforms

  • Variable frequency step less speed regulation, it results in stable operation & no shaking, adjustable in speed.
  • IR lamp which is most efficient for PET heating, is fully considered for lower power consumption and higher production efficiency.
  • Bottle neck cooling protection keeps the shape of the screw thread.
  • Close-loop heating control system with corresponsive high accurate digital meter, and imported adjustable high power frequency

    controller, make sure stable heating, energy saving and not to be affected by fluctuated voltage.

Description UNIT SBMH7-BX SBMH8-BX SBMH15-BX
Heating Sects sect 7 8 15
Heating Heads pcs 72 72 50
Power Voltage V AC380 AC380 AC380
Power Current A 3.0 3.0 3.0
Power Consumption KW 18 20 50
Machine dimensions M 1.72×0.6×1.37 2.03×0.65×1.37 2.35×0.65×1.65
Machine weight KG 230 230 350
* Some data may updated without any notice
