1.0 Liter Automatic Extrusion Blow Molding Machines

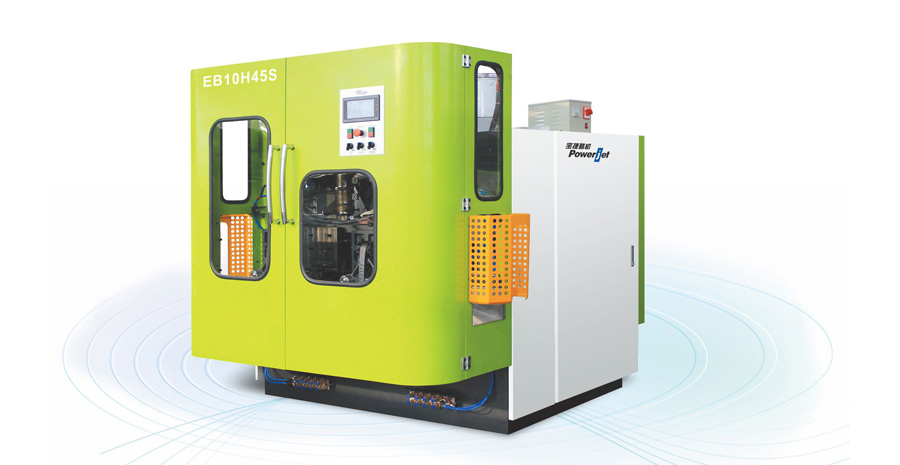

1.0 Liter Small Bottle Extrusion Blow Molding Machine_EB10H45S

1.0 Liter Automatic Extrusion Blow Molding Machines

  • Double stations and linear movement, high intensity stainless steel mould platens, driven by hydraulic pressure, designed and analyzed by finite element aided software, ensure big clamping force, no expansion of mold.
  • Specially designed screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top-quality requirement.
  • Famous brand of vector inverter in high pulling torque, complied with special extrusion hardened reducer, can operate in stable, durable, and low noise state.
  • All hydraulic parts are from Yuken (Japan). Pressure & proportional control are set by PLC, which ensures the stable operation; Mold movement is controlled by special speed limited valves, ensuring precise position and non-striking.
  • Parts of pneumatic system are imported from FESTO (Germany), SMC (Japan), etc, which are top brands in the world. . These make sure the operation of machine reliably and accurately; the air circulation is large while the leakage is very small.
  • High speed Siemens (Germany) PLC with multiple language touch screen, easy-access menu display, is easy to control and operate.
  • Schneider (France) touchless sensors and switches are adopted, which are dependable and in low heat, & prolonged life.
  • Multiple-way PID controlled temperature heating is precise and stable.
  • Fully automatic operation can be achieved by optional equipments like auto-deflashing, rotary trimming device, or separated rotary trimming equipment.

Model Unit EB10H40S EB10H45S EB10H50S
Max. Volume L 1.0 1.0 1.0
Clamping Force KN 27 27 27
Dry Cycle Time Sec. 3.2 3.2 3.2
Screw Diameter mm 40 45 50
Screw L/D Ratio mm 24 24 22
Screw Rotary Speed RPM 75 75 75
Extrusion Weight(HDPE) kg/hr 20 25 35
Extrusion Motor Power KW 5.5 7.5 11.0
Pump Motor Power KW 5.5 5.5 5.5
Heating Power KW 3.6 4.5 5.5
Operation Pressure Mpa 0.6 – 0.8 0.6 – 0.8 0.6 – 0.8
Air Consumption m3/min. 1.0 1.0 1.0
25°C Chilled Water Consumption L/min 13 13 13
Oil Tank Capacity L 47 47 47
Machine Dimension M 2.2×1.7×2.2 2.2×1.7×2.2 2.2×1.7×2.2
Machine Weight Ton 1.5 1.7 1.8
* Some data may updated without any notice

Mould platen and die head drawings and product specification EB10H

Cover of extrusion blow molding machines brochure
