2.3.1 Mold platen setup: mold open & mold close setting

Specifications and process path of mold platen setup for Powerjet injection molding machines. To help you understand the setting principle of clamping unit.

Path: screen –> F2 mold platen –> F2 mold platen

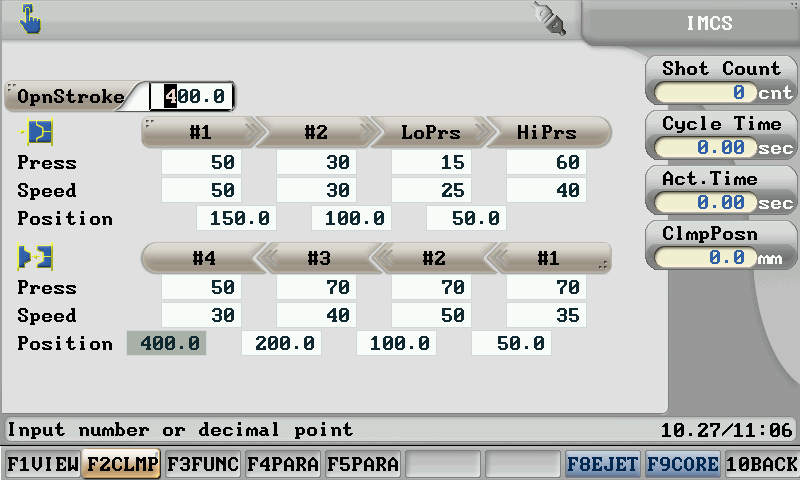

f2-mold-platen-setting-screen-of-powerjet-injection-molding-machines

F2mold platen setting screen

Open mold stroke: The maximum stroke of the open mold.

Open close mold data settings: Open and close mold movement are divided into 4 stages. The pressure, speed, could be adjust separately. The pressure and speed is transfer according to the open close mold position.

Mold platen position: Display mold platen current position.
