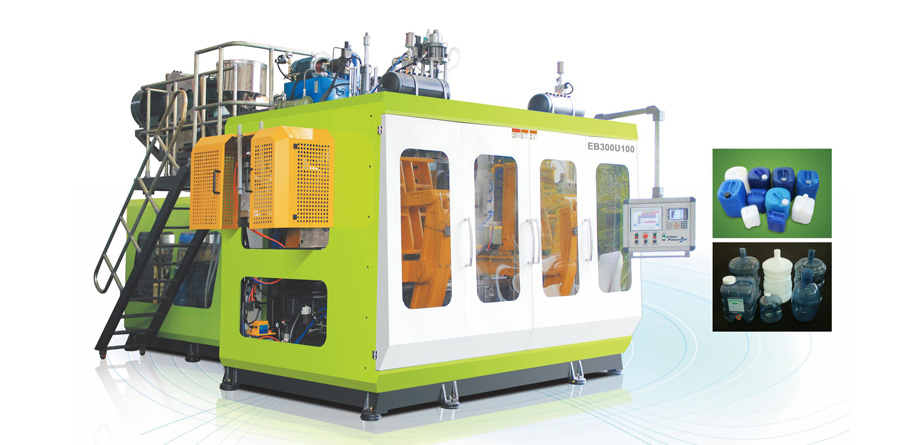

12 & 30 Liter Double Station High Speed Extrusion Molding Machines
- Toggle balance clamping structure,with platen opening & clamping and mold platen movement by linear guide,to achieve low friction and high speed.
- Based on the Finite Element Analysis design,and platen,toggle and platen frame made in high intensity nodular cast iron.
- High speed mold clamping oil cylinder with differential speed function,and high speed mold clamping oil cylinder with special anti-shock cushion valve structure.
- Specially designed screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top-quality requirement.
- Multi-screw &multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
- Famous brand of vector inverter in high pulling torque, complied with special extrusion hardened reducer, can operate in stable, durable, and low noise state.
- All hydraulic parts are from Yuken (Japan). Pressure & proportional control are set by PLC, which ensures the stable operation; Mold movement is controlled by special speed limited valves, ensuring precise position and non-striking.
- Parts of pneumatic system are imported from FESTO (Germany), SMC (Japan), etc, which are top brands in the world. . These make sure the operation of machine reliably and accurately; the air circulation is large while the leakage is very small.
- High speed Siemens (Germany) PLC with multiple language touch screen, easy-access menu display, is easy to control and operate.
- Schneider (France) touchless sensors and switches are adopted, which are dependable and in low heat, & prolonged life.
- Multiple-way PID controlled temperature heating is precise and stable.
- Fully automatic operation can be achieved by optional equipments like auto-deflashing, rotary trimming device, or separated rotary trimming equipment.
| Model | Unit | EB120U85 | EB120U90 | EB300U100 |
|---|---|---|---|---|
| Max. Volume | L | 12 | 12 | 30 |
| Clamping Force | KN | 150 | 150 | 200 |
| Max. Mold Size | mm | 600x52x | 820×420 | 850×700 |
| Screw Diameter | mm | 85 | 90-100 | 100 |
| Screw L/D Ratio | mm | 24 | 24 | 24 |
| Screw Rotary Speed | RPM | 70 | 70-75 | 70 |
| Extrusion Weight(HDPE) | kg/hr | 130 | 150 | 200 |
| Extrusion Motor Power | KW | 30 | 37-55 | 55 |
| Pump Motor Power | KW | 22 | 22 | 22 |
| Heating Power | KW | 20 | 22 | 25 |
| Operation Pressure | Mpa | 0.6 – 0.8 | 0.6 – 0.8 | 0.6 – 0.8 |
| Air Consumption | m3/min. | 4 | 4 | 3 |
| 25°C Chilled Water Consumption | L/min | 300 | 300 | 400 |
| Oil Tank Capacity | L | 180 | 180 | 210 |
| Machine Dimension | M | 4.2×3.5×3.0 | 4.2×3.5×3.0 | 5.5×5.1×4.3 |
| Machine Weight | Ton | 11.0 | 11.2 | 20.0 |
| * Some data may updated without any notice | ||||
